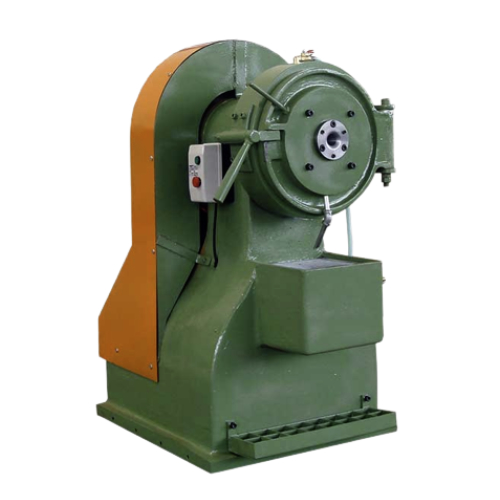

What is swaging machine and how it works?

A swaging machine is a machine used to shape and form metal by compressing it with a series of dies. The process is called swaging and is used to reduce the diameter of a rod or tube, or to create a specific shape. Swaging machines can be manual or powered, and are commonly used in manufacturing and metalworking industries to create parts for various applications.

How swaging machine works?

A swaging machine works by compressing a piece of metal with a series of dies. The metal, typically in the form of a rod or tube, is placed into the machine and held in place by a chuck or clamp. The dies, which are typically made of hardened steel, are then brought together to compress and shape the metal.

The dies can be configured to reduce the diameter of the metal, create a specific shape, or even join two pieces of metal together. The amount of pressure applied by the dies can be adjusted to achieve the desired shape or size.

The process of swaging can be done in a single pass, or multiple passes depending on the size and shape of the metal piece, the desired final shape and the thickness of the material.

Swaging can also be done cold (at room temperature) or hot (using heated dies) .

It is used to create parts for aerospace, automotive, medical, and many other industries.

The difference between crimping and swaging

Crimping and swaging are two distinct methods used in joining or securing components, such as wires, cables, or tubing. While both techniques involve the deformation or compression of a material, they differ in their application and the resulting connection.

Crimping:
Crimping involves compressing a metal sleeve or ferrule around a wire or cable to create a secure connection. The crimping process typically involves using a specialized tool, such as a crimping plier or crimping machine, to apply pressure and reshape the metal sleeve. The sleeve is often made of materials like copper or aluminum, and it contains features such as ridges or indentations that grip the wire when compressed. Crimping is commonly used in electrical and telecommunications industries to create reliable and durable connections.

Swaging:
Swaging, on the other hand, is a process of permanently joining components by deforming or reshaping them. It involves using a swaging tool to compress or expand the material, typically metal, into the desired shape. Unlike crimping, which relies on a separate sleeve or ferrule, swaging reshapes the material itself. Swaging is commonly used to connect tubing or pipes, where the end of one tube is expanded to fit inside another tube, creating a tight and secure joint. It is often utilized in applications such as plumbing, HVAC systems, or hydraulic systems.

In summary, crimping involves compressing a separate metal sleeve around a wire or cable, while swaging involves reshaping the actual material itself, typically tubes or pipes, to create a secure connection. The choice between crimping and swaging depends on the specific application, the materials being joined, and the desired strength and durability of the connection.

The benefits of swaging machine

Swaging machines are highly advanced tools that are designed to provide a range of benefits to various industries. As a leading Taiwan swaging machine manufacturer, we take pride in offering state-of-the-art swaging machines that are highly efficient, reliable, and easy to use.

One of the key benefits of swaging machines is their ability to produce high-quality and precise components, which are essential in many industrial applications. Swaging machines can be used to create perfectly round, smooth, and consistently sized tubes, rods, and wires, making them ideal for various industries such as aerospace, automotive, and medical.

In addition, swaging machines can also improve the mechanical properties of materials. By applying a compressive force to the material, swaging can increase its hardness and strength, making it more durable and resistant to wear and tear. This is particularly useful in the manufacturing of components that are exposed to high levels of stress and strain, such as hydraulic cylinders, bearings, and shafts.

Swaging machines are also more cost-effective than alternative methods of manufacturing, such as forging or casting. Swaging requires less material and energy, and it results in minimal material waste, making it a more environmentally friendly option as well. Additionally, swaging machines are highly automated and can be operated with minimal human intervention, leading to increased efficiency and productivity.

Overall, swaging machines offer a range of benefits to various industries, including high precision, improved mechanical properties, cost-effectiveness, and increased efficiency. As a leading Taiwan swaging machine manufacturer, we are dedicated to providing top-quality swaging machines that are designed to meet the unique needs and requirements of our customers.

Horen swaging machine features:

1. Adjustable pressure: The pressure applied by the dies can be adjusted to achieve the desired shape or size of the metal piece.

2. Variety of dies: Swaging machines are equipped with a variety of dies that can be interchanged to create different shapes and sizes.

3. Manual or powered: Swaging machines can be manual or powered, and can be operated by a hand lever or by a motor.

4. Precision and speed: Swaging machines are capable of achieving high levels of precision and can produce parts quickly.

5. Durable construction: Swaging machines are typically built with a strong and durable construction to withstand the heavy loads and forces involved in the swaging process.

6. Safety features: Some swaging machines have safety features like guards and emergency stop buttons to protect the operator.

7. Cold or hot swaging: Some machines are equipped to do both cold and hot swaging, which allows to work with different materials and different applications.

8. Automatic or semi-automatic: Some machines have automatic feeders and/or automatic ejectors, allowing for fast and efficient production.

9. Computer Control: Some swaging machine are computer controlled, which allows for precise control over the swaging process, and easy to change the parameters.

Types of swaging machine:

1. Hand-operated swaging machine: This type of machine is operated manually by a hand lever and is typically used for small-scale or occasional swaging jobs.

2. Motor-driven swaging machine: This type of machine is powered by an electric motor and is capable of producing parts quickly and efficiently.

3. CNC swaging machine: This type of machine is computer-controlled and can be programmed to produce parts with high precision and repeatability.

4. Rotary swaging machine: This type of machine uses a rotating motion to compress the metal, and is typically used to reduce the diameter of a rod or tube.

5. Planetary swaging machine: This type of machine uses a planetary motion to compress the metal, and is typically used for creating complex shapes and profiles.

6. Multi-head swaging machine: This type of machine is equipped with multiple heads that can be used simultaneously to increase production speed.

7. Combined swaging machine: This type of machine is capable of performing multiple operations such as swaging, drawing, flanging and more.

8. Cold swaging machine: This machine swage the metal at room temperature.

9. Hot swaging machine: This machine swage the metal using heated dies.

Conclusion

Horen Industrial is expert of swaging machine, to learn more about milling head, please contact HOREN today!
