What is Cold Drawing and What Does a Cold Drawing Machine Do?

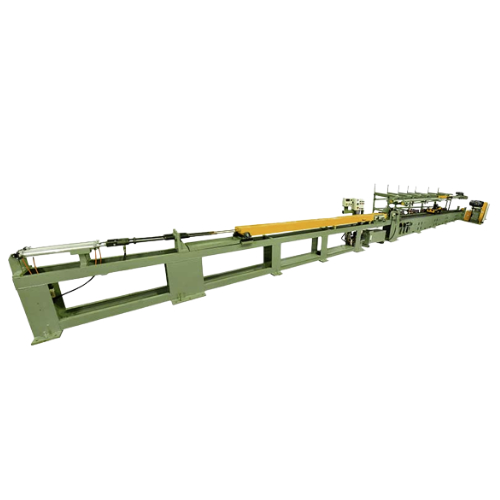

A cold drawing machine, also known as a cold drawing bench or cold drawing process, is a specialized machine used in metalworking to reduce the diameter and increase the length of metal tubes, wires, or rods. It is a common process used to produce high-quality metal products with precise dimensions and improved mechanical properties.

The cold drawing process involves pulling a metal workpiece through a series of dies or mandrels to reduce its cross-sectional area while increasing its length. Unlike hot drawing processes that involve heating the metal, the machine operates at room temperature. This cold working technique allows for greater control over the final product's dimensions and surface finish.

Here's a brief overview of how a typical cold drawing machine works:

1. Material preparation: The process begins with the selection of suitable metal material, such as steel, aluminum, copper, or brass. The material is usually in the form of a rod, wire, or tube.
2. Lubrication: The workpiece is coated with a lubricant to reduce friction between the metal and the drawing dies, ensuring smooth and consistent pulling.
3. Drawing process: The workpiece is fed into the machine, where it passes through a series of dies or mandrels arranged in sequence. Each die or mandrel has a smaller diameter than the previous one.
4. Reduction and elongation: As the workpiece is pulled through the dies, it undergoes plastic deformation, reducing its diameter and increasing its length. The process is repeated several times until the desired dimensions are achieved.
5. Annealing (optional): Depending on the material and its properties, an annealing process may be performed after a certain number of drawing passes to relieve stress and restore ductility.
6. Finishing operations: After the desired size and length are achieved, the drawn product may undergo additional processes such as cutting, straightening, or surface treatments to meet specific requirements.

7 Benefits of Using a Cold Drawing Machine for Your Manufacturing Needs

• Dimensional Accuracy: Cold drawing machines provide precise control over the reduction in diameter and increase in length of metal tubes, wires, or rods. This results in highly accurate and consistent dimensions, ensuring uniformity across the produced parts. The ability to achieve tight tolerances is crucial in industries where precise measurements are required.
• Improved Surface Finish: Cold drawing helps enhance the surface finish of the metal products. The drawing process smoothens the surface, reducing imperfections such as scratches, burrs, or irregularities. This improved surface finish is beneficial in applications where aesthetics or reduced friction are important.
• Enhanced Mechanical Properties: Cold drawing induces strain hardening in the metal, leading to improved mechanical properties. The process increases tensile strength, hardness, and yield strength while maintaining or even improving ductility. This results in stronger and more durable products with enhanced performance characteristics.
• Waste Reduction: Cold drawing allows for material savings by minimizing material waste during the manufacturing process. The controlled reduction in diameter enables the efficient utilization of the starting material, reducing scrap and material costs. This can contribute to cost savings in the long run.
• Versatility: Cold drawing machines can handle various types of metals, including steel, aluminum, copper, and brass. They are adaptable to different product shapes, such as tubes, wires, or rods, making them versatile for a wide range of applications across different industries.
• Increased Production Speed: Cold drawing machines are designed for high-speed production, enabling efficient processing of large quantities of metal components. The automated nature of the machines, combined with their ability to achieve precise and consistent results, reduces production time and increases overall productivity.
• Customization and Flexibility: Cold drawing machines can be tailored to specific requirements, allowing for customization of the drawing process based on the desired dimensions, materials, and end-use applications. This flexibility enables manufacturers to meet unique customer needs and produce a wide variety of products.

Exploring the Different Types of Cold Drawing Machines to Fit Your Needs

• Tube Drawing Machines: Tube drawing machines are designed to reduce the diameter and increase the length of metal tubes. They typically consist of a series of dies or mandrels through which the tube is pulled, resulting in precise size reduction and elongation. Tube drawing machines are commonly used in industries such as automotive, aerospace, and plumbing.
• Wire Drawing Machines: Wire drawing machines are used to reduce the diameter of metal wires while increasing their length. The machines employ a series of dies or cones that progressively reduce the wire's cross-sectional area. Wire drawing machines are widely used in the manufacturing of wires for electrical cables, fencing, and various industrial applications.
• Bar Drawing Machines: Bar drawing machines are specifically designed to reduce the diameter of metal bars or rods. They utilize multiple dies or mandrels arranged in stages to achieve the desired size reduction. Bar drawing machines are commonly used in the production of precision components, such as shafts, fasteners, and automotive parts.
• Multi-Stage Drawing Machines: Multi-stage drawing machines are equipped with several drawing dies or mandrels arranged in multiple stages. These machines allow for sequential size reduction, providing greater control over the drawing process and allowing for more precise dimensional accuracy. Multi-stage drawing machines are commonly used when high precision and complex shaping are required.
• Continuous Drawing Machines: Continuous drawing machines are designed for high-volume production, where the material is continuously fed into the machine and drawn through a series of dies or mandrels. These machines offer high efficiency and are suitable for continuous manufacturing processes, such as wire or tube production.
• Hydraulic Drawing Machines: Hydraulic drawing machines use hydraulic systems to provide the necessary force for the drawing process. These machines offer high power and control, allowing for efficient size reduction while maintaining product quality.
• Servo-Driven Drawing Machines: Servo-driven drawing machines utilize servo motors to provide precise control over the drawing process. These machines offer excellent speed control, accuracy, and repeatability, making them suitable for applications requiring tight tolerances.

When selecting a cold drawing machine, consider factors such as the type and size of the material to be drawn, required dimensional accuracy, production volume, and specific industry requirements. Consulting with manufacturers or industry experts can help determine the most appropriate type of cold drawing machine for your manufacturing needs. Contact us~
